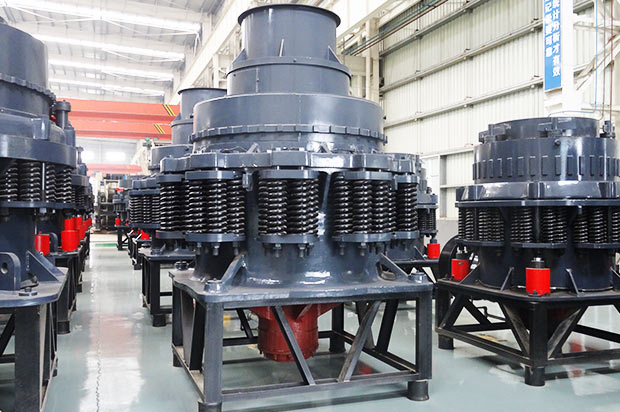

Spring cone crusher is is the earliest cone crushing equipment which adopts the laminating crushing principle. It is suitable for the medium, fine and super fine crushing of moderate hardness rocks and ores.
Feeding Size: 65-300mm
Production Capacity: 12-1000TPH
Get more information about theSpring Cone Crusher
Spring cone crusher is developed according to the analysis of customer return data for several years by our company, which is the newly developed product in accordance with international advanced production level. Spring belongs to the fuselage overload protection facilities, which can protect the crushing chamber from the damage by the hard materials. Spring cone crusher is not only suitable for the stationary crushing, but also used for mobile crushing operations.
The cavity type of spring cone crusher machine can be adjusted according to the usage of the products (the grain size and type of stone product), which has stronger adaptability, thus lowering the production cost of customers. The equipment is widely used in metal and nonmetal ore, cement plant, construction, sand and gravel, metallurgical industry, etc.
It is suitable for processing iron ore, granite, basalt, diabase, shale, quartz stone, gravel, limestone, coal gangue, non-ferrous metal ores, pebbles, etc.
When the spring cone crusher is working, the materials are repeatedly subjected to impact, bending and crushing in the crushing cavity formed by fixed cone and movable cone. After several times of extrusion, impact and bending, the materials will be crushed into the required size, and then discharged through the discharging port.
1. It adopts dry oil or water special sealing to ensure the reliable operation.
2. The integration of hydraulic and lubrication, high automation degree.
3. Hydraulic quick cleaning of the crushing cavity can reduce downtime and improve the work efficiency.
4. The spring insurance system provides safe and effective overload protection.
5. It provides the best scheme for the medium crushing, fine crushing and super fine crushing work.
Zhongde Heavy Industries is experienced in the production of spring cone crusher, which has promising selling tend both in domestic and foreign mining equipment market. In addition, the spring cone crusher price of our company is decided by the different models and configurations. If you are interested, please contact us!
| Specification | Model | Diameter of large end of crushing cone (mm) |
Max.feeding size(mm) |
Width of discharge opening (mm) |
Processing capacity (t/h) |
Motor power (kw) |
Total weight （t） |
Dimensions (L×W×H) （mm） |
| Φ600 | PYB600 | 600 | 65 | 12-25 | 40 | 8P 30 | 5 | 2234×1370×1675 |
| PYD600 | 35 | 3-13 | 12-23 | 5.5 | 2234×1370×1675 | |||
| Φ900 | PYB900 | 900 | 115 | 15-50 | 50-90 | 8P 55 | 11.2 | 2692×1640×2350 |
| PYZ900 | 60 | 5-20 | 20-65 | 11.2 | 2692×1640×2350 | |||
| PYD900 | 50 | 3-13 | 15-50 | 11.3 | 2692×1640×2350 | |||
| Φ1200 | PYB1200 | 1200 | 145 | 20-50 | 110-168 | 8P 110 | 24.7 | 2790×1878×2844 |
| PYZ1200 | 100 | 8-25 | 42-135 | 25 | 2790×1878×2844 | |||
| PYD1200 | 50 | 3-15 | 18-105 | 25.3 | 2790×1878×2844 | |||
| Φ1750 | PYB1750 | 1750 | 215 | 25-50 | 180-360 | 8P 160 | 50.3 | 3910×2894×3809 |
| PYZ1750 | 185 | 10-30 | 80-210 | 50.3 | 3910×2894×3809 | |||
| PYD1750 | 85 | 5-13 | 60-180 | 50.2 | 3910×2894×3809 | |||
| Φ2200 | PYB2200 | 2200 | 300 | 30-60 | 420-700 | 8P 280-260 | 80 | 4622×3302×4470 |
| PYZ2200 | 230 | 10-30 | 130-410 | 80 | 4622×3302×4470 | |||
| PYD2200 | 100 | 5-15 | 80-200 | 81.4 | 4622×3302×4470 |
| Specification | Max.feeding size(mm) |
Processing capacity (t/h) |
| Φ600 | 65 | 40 |
| 35 | 12-23 | |
| Φ900 | 115 | 50-90 |
| 60 | 20-65 | |
| 50 | 15-50 | |
| Φ1200 | 145 | 110-168 |
| 100 | 42-135 | |
| 50 | 18-105 | |
| Φ1750 | 215 | 180-360 |
| 185 | 80-210 | |
| 85 | 60-180 | |
| Φ2200 | 300 | 420-700 |
| 230 | 130-410 | |
| 100 | 80-200 |
