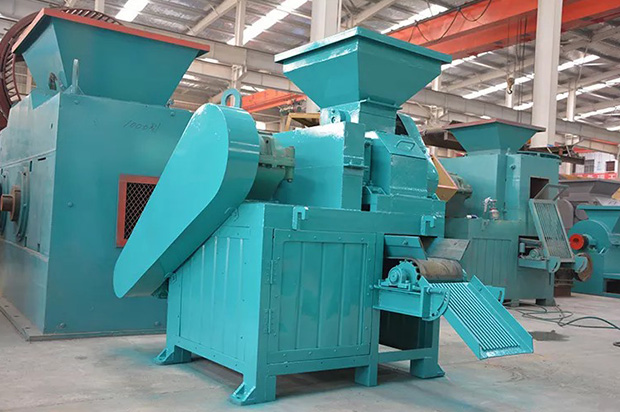

Sponge Iron Briquetting Machine

Sponge Iron Briquetting Machine

Brief description:no matter what kind of production process is, all need use briquette machine to complete briquetting raw materials, mixing all materials such as iron ore, iron concentrates, coke, coal and binder together, to press them into briquettes by briquette mac.

Email us at info@sinoftm.com

Advantage

  • 1. The machine is used for pressing many raw materials
  • 2. Special designed assistant equipment. It has fully automatic feeding sending system
  • 3. The briquettes can be designed according to customers' requirement.
  • 4. It has high efficency, easy to operate and simple to maintain

Get more information about theSponge Iron Briquetting Machine

Introduction of Sponge Iron Briquetting Machine

Brief description: no matter what kind of production process is, all need use briquette machine to complete briquetting raw materials, mixing all materials such as iron ore, iron concentrates, coke, coal and binder together, to press them into briquettes by briquette mac.

Sponge iron also named direct reduction iron (DRI), it is the raw material for electric furnace steelmaking. In the sponge iron production process, no matter what kind of production process is, all need use briquette machine to complete briquetting raw materials, mixing all materials such as iron ore, iron concentrates, coke, coal and binder together, to press them into briquettes by briquette machine, then remove moisture, the drying briquettes can be smelted in furnace.

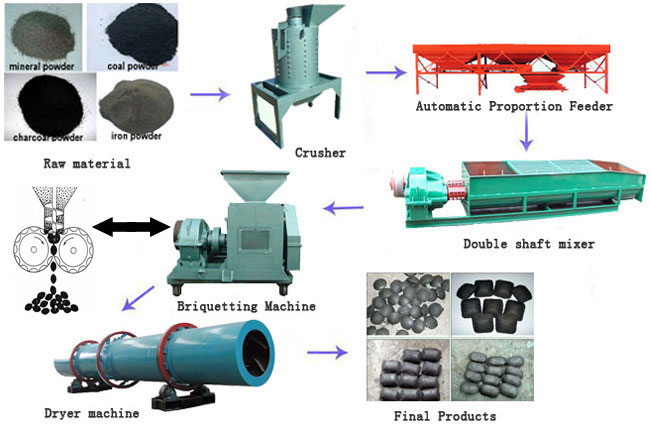

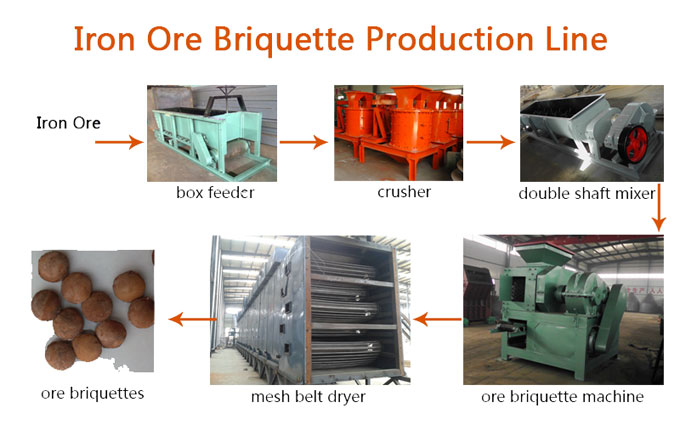

Briquettes process generally include batching, grinding, mixing, pressing and drying.

1.Hopper silo, or box type quantitative feeder, it load and convey raw materials to crusher evenly.

2.Two-stage crusher, the raw material be crushed in to the appropriate size, generally it is most suitable that not more than 5mm.

3.Liquid mixer, be used for mixing liquid binder, if use powdered binder, it should use a drying powder feeding equipment.

4.Horizontal two shafts mixer, evenly mixing raw materials, adhesives and water together, the adhesive will be evenly distributed in the raw materials so that achieve better strength, making briquettes better.

5.Carbon silicon briquette machine is a core of whole production line, it press materials into briquettes, the briquettes' size and shape can be customized, we can produce various shapes of rollers.

6.Vertical dryer, drying the wet briquettes which came from briquette machine, the briquettes can be dried to 3% water content, finished briquettes will put in storage or packaged.

7.Belt conveyor, connected to devices, it is guarantee for the whole manganese ore briquettes production line to realizes full automation.

The requirement for raw materials of sponge iron briquette machine production:

1.The particle size of the raw material should be between 0-5mm.

2.Cannot contain impurities, especially large metal. Such as nails, or iron, rocks, it very likely damage roller and spindle.

3.The feeding of whole production line should be stable, even, ensure workloads of briquette machine stable, to get high efficiency of production.

Technical Parameter

Model Roller Diameter
(mm)
Capacity(t/h) Power(kw) Reducer
FTMQ290 290 1-2.5 5.5-7.5 350
FTMQ360 360 3-5 7.5-11 350
Heavy FTMQ360 360 3-5 7.5-11 400
FTMQ430 430 5-8 15 400
Heavy FTMQ430 430 5-8 15 500
FTMQ500 500 8-11 30 650
FTMQ650 650 10-15 37-45 750
FTMQ750 750 20-25 45 750
FTMQ850 850 20-28 55 850
FTMQ1000 1000 25-35 90 1000
Model Roller Diameter
(mm)
Capacity
(t/h)
FTMQ290 290 1-2.5
FTMQ360 360 3-5
Heavy FTMQ360 360 3-5
FTMQ430 430 5-8
Heavy FTMQ430 430 5-8
FTMQ500 500 8-11
FTMQ650 650 10-15
FTMQ750 750 20-25
FTMQ850 850 20-28
FTMQ1000 1000 25-35
