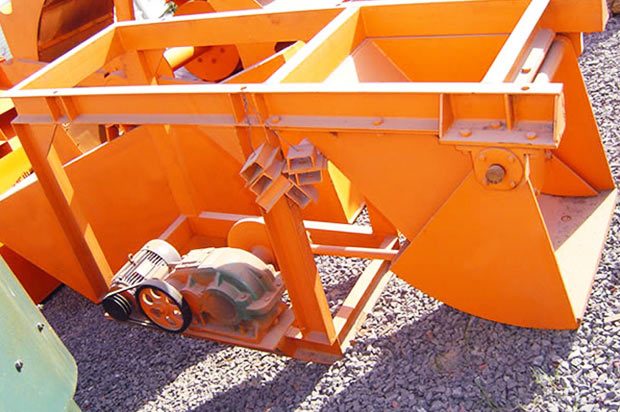

Pendulum Feeder

Introduction of Pendulum Feeder

Pendulum feeder is the auxiliary equipment of transport machinery, which is suitable for short distance transportation. It can transfer small bulk materials with large proportion. It is often used as the feeding equipment of belt conveyor in the beneficiation process, which can also be used in coal preparation, chemical industry, etc. Pendulum feeder is not suitable for delivering dry powder or large particle materials, otherwise it will cause dust pollution and outlet plug phenomenon, and the feeding particle size should be within the range of 35- 100 mm.

Advantages:

1. It has uniform feeding, which can achieve timing and quantitative feeding.

2. Its operation process is visual, which has simple structure and convenient adjustment.

3. Light weight, small volume, convenient maintenance.

4. The body adopts enclosed structure, which can prevent dust pollution.

In addition to the above advantages, the feeding quantity of pendulum feeder also can be adjusted:

1. Adjust the eccentric distance of the eccentric pin axis on the eccentric wheel, and it can change the stroke length of the swing bottom, which has a wide adjustment range of feeding volume.

2. Adjusting the discharge gate level, change the size of discharge port, which can make accurate adjustment of the feeding quantity.

The Use Precautions and Maintenance of Pendulum Feeder:

1. During the installation of pendulum feeder, you should pay attention to the horizontal vertical between the host and body.

2. After installation, check whether each part of the bolt has looseness, if it is loose, please fasten.

3. Before operation, inspect whether the power line and control switch is flexible.

4. Start the machine before the feeding process, and then the stopping of the equipment is on the opposite, stop feeding and then shut down the machine.

5. In the operation of the equipment, when the feeding is abnormal, immediately stop and check the problem, then solve it.

6. If the bearing oil temperature rise, you should stop and check the reason and then eliminate it.

7. Regularly check the wear degree of bearings, and then replace them if it is necessary.

If you are looking for pendulum feeder machine manufacturer, Zhongde Heavy Industries is the best choice. With favorable pendulum feeder price and considerate service, we are fully approved by customers from home and abroad. Welcome the new and old customers to visit us!

Technical Parameter
