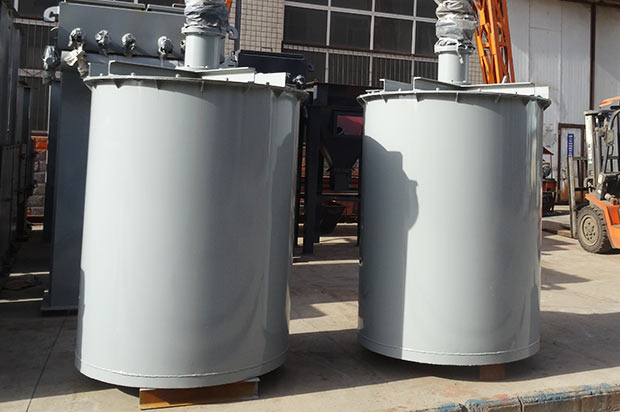

Mixing Barrel

Mixing Barrel

he mixing barrel uses impeller rotation to fully mix drug and pulp. It is the equipment used to increase drug reaction time and strengthen the drug reaction quality.

Email us at info@sinoftm.com

Advantage

  • Affordable Price.
  • Long service life
  • Good sealing performance.
  • Simple structure, easy to operate.
Mixing Barrel

Get more information about theMixing Barrel

Introduction of Mixing Barrel

The stirring of materials can make materials mixed uniformly, which undertakes the tasks of providing qualified pulp for the flotation process. It is the important part in ore dressing process, thereby mixer emerges as the times require. The mixing barrel uses impeller rotation to fully mix drug and pulp.

It is the equipment used to increase drug reaction time and strengthen the drug reaction quality, which is not only suitable for ore dressing industry, but also can be used for a variety of chemical and industrial sectors. Mixer also has other names, such as mixing barrel and mineral mixed barrel.

Mixer

Because the entire lower bearing and impeller are submerged in the slurry during the operation process of mixer, so the important parts, sealing device as well as the structure and durability of impeller are particularly important. If the impeller cannot play its role, it will directly lead to the concentration changes of the slurry, thus affecting the adding amount of chemical agent, and finally has significant effect of the flotation results.

The Classification of Mixing Barrel:

1. The slurry mixing barrel. It is used for pulp mixing before flotation to make mineral particles suspended and full function and medicament will occur between them.
2. The lifting mixing barrel. It has a stirring function and lifting effect, and the lifting height can be tailored according to the actual needs.

Maintenance Methods:

1. Before starting the machine, check whether the bolts of each part are fastening, whether the lubricating oil is filled.
2. Adding water to remove the precipitate in the cylinder after stopping the machine.

Now there are many kinds of mixers on the market, and the manufacturers are varied from each other. When purchasing mixing barrels, you should consider the strength of the company. Zhongde Heavy Industries has mineral mixer barrel for sale, and we have our own production workshops, which covers an area of 200000 square meters with 60000 square meters of standard heavy-duty industrial workshop. Our products have passed ISO9001 international quality system certification. We are sincerely waiting for your arrival!

Technical Parameter

Model tank inner dimension Effective Cubage
(m³)
Rotate Speed
(r/min)
Main Motor
(KW)
Dimensions
(LxWxH)
(MM)
Diameter (mm) Width (mm)
XB-10×10 1000 1000 0.58 390 1.5 1130×1130×1521
XB-12×12 1200 1200 1.18 390 2.2 1130×1330×1721
XB-15×15 1500 1500 2.2 280 3 1750×1640×2190
XB-20×20 2000 2000 5.6 210 5.5 2380×2160×2850
XB-25×25 2500 2500 11.2 190 7.5 2990×2720×3540
XB-30×30 3000 3000 19 140 18.5 4030×3270×3010
XB-35×35 3500 3500 29 230 30 3920×3740×4970
XB-40×40 4000 4000 45 210 37 4520×4320×5570

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Effective Cubage
(m³)
Rotate Speed
(r/min)
Main Motor
(KW)
XB-10×10 0.58 390 1.5
XB-12×12 1.18 390 2.2
XB-15×15 2.2 280 3
XB-20×20 5.6 210 5.5
XB-25×25 11.2 190 7.5
XB-30×30 19 140 18.5
XB-35×35 29 230 30
XB-40×40 45 210 37

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
