Calcite Grinding Mill,Calcite Grinding Mill for Sale,Calcite Grinding Mill Price -Zhongde Heavy Industries

Introduction of Calcite Grinding Mill

Calcite is a kind of the most commonly seen minerals in natural calcium carbonate, which has various types, and it can be distinguished by colors and shapes. Calcite has brittle texture and 3 Mohs hardness, which belongs to the easy grinding ore. Calcite has wide applications in our daily life: in metallurgy industry, calcite can be used as a solvent, which can also be used to produce cement and lime.

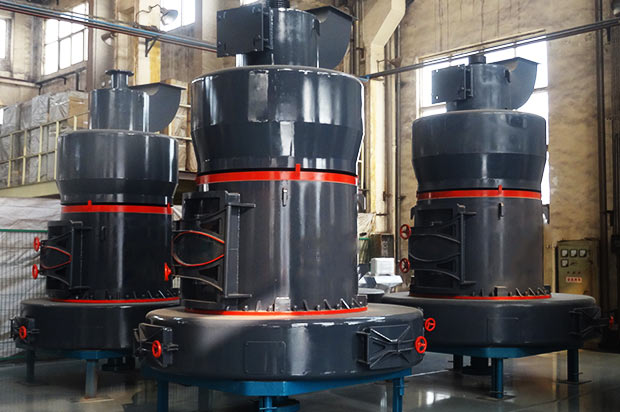

Calcite Grinding Mill

It can also play a role in the production process of plastic, lime and toothpaste. If the calcite ingredients are added in glass production, the generated glass will become translucent, which is especially suitable to be used as the glass lamp shade. In the production process, it can play the role of compatibilizer, calcite, reinforcing, toughening increment and cost reduction.

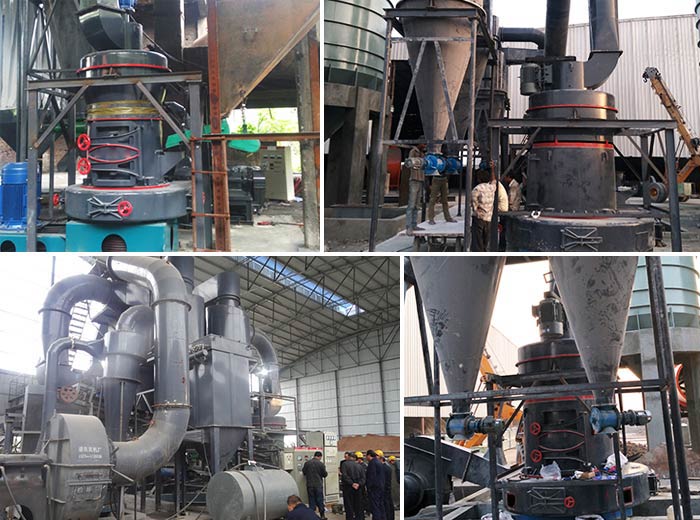

Calcite Grinding Mill

According to the characteristics of calcite and the market application of calcite, calcite grinding mill came into being. Zhongde Heavy Industries has calcite grinding mill for sale, and the fineness of calcite grinding mill produced by company can reach 3000 mesh, and its discharging fineness can be regulated, to fully meet the market demand of calcite. In addition, the calcite grinding mill price of our company is reasonable and favorable. Our calcite grinding mill has been widely sold to Eastern Europe, Middle East, Africa as well as other countries and regions.

The Characteristics of Calcite Grinding Mill:

1. High product fineness, high production efficiency.

2. Low energy consumption, energy saving.

3. Wide regulation range of the grain size.

4. High density blade and high product quality completely avoid the "coarse powder running" phenomenon.

5. The analysis machine adopts variable frequency speed control, which has reduced the labor cost with high automation degree.

6. The key components are made of antifriction materials.

Production Process:

Bulk calcite—jaw crusher(coarse crushing)—impact crusher(fine crushing)—hoist to the bin—mill grinding—conveyor to the bin—superfine grinding mill—dust removal—package

After-sales Service:

1. Honest and trustworthy, on time delivery.

2. Professional on-site installation, free training of operators.

3. Regular visits to customers to understand the use of equipment.

4. Carry out the warranty service according to the contract.

Technical Parameter

Parameter Model	Raymond mill62	High strength66	High strength76	High strength87	High strength92	High strength93	High strength97	Raymond mill4119	Raymond mill4525
Feeding size（mm）	<15	<15	<20	<25	<25	<25	<25	≤25	≤30
Size of finished product（mm）	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.033	0.173-0.044	0.173-0.044
Shift output of different material fineness(t)	0.6-9	1-20	1.5-25	2.8-33	3-36	3.5-40	4-52	8-78	16-176
Rotate speed of central shart（r/min）	274	190	170	161	148	140	130	105	82
Diameter of pulverizing ring（mm）	525	725	850	907.5	973	1006	1050	1400	1770
Diameter of pulverizing ring（mm）	150	210	250	270	300	300	310	410	450
Height of pulverizing roller（mm）	100	150	150	150	160	160	170	190	250
Main Motor(kw)	7.5	15	18.5	22	30	30	37	75	132
Fan Motor	4-5.5	4-11	4-15	4-18.5	4-22	2-22	4-37	4-75	4-132
Analyzer Motor	6-1.1	6-2.2	6-2.2	6-2.2	6-2.2	6-3	4A-5.5	4B-7.5	4A-18.5

Parameter Model	Feeding size（mm）	Size of finished product（mm）
High-strength97	<25	0.173-0.033
High-strength93	<25	0.173-0.033
High-strength92	<25	0.173-0.033
High-strength87	<25	0.173-0.033
High-strength76	<20	0.173-0.033
High-strength66	<15	0.173-0.033
High-strength62	<15	0.173-0.033
Raymond mill4119	≤25	0.173-0.044
Raymond mill4525	≤30	0.173-0.044
